TM-T88iv - Epson Model M129h

IBS Setup

Additional Resources

Epson to MMF Cash Drawer Cable Notes

  • Connect side that says 'To Epson Printer Drawer #1' directly to cash drawer
  • Connect side that says the MMF P/N to the printer

Printing through a Bos Thin Client

  • HPT MUST be set to on
  • Set HPT printer selection to *EPDFX5000 (under advanced options on a Bos Thin Client)

TM-T88IV

spacer.gif spacer.gif spacer.gif spacer.gif spacer.gif spacer.gif spacer.gif
Item Description Version View Download File Size Date
Data Sheets
Product Data Sheet 122 KB 1/11/2008
Manuals
Technical Reference Guide A 1344 KB 12/20/2005
User (Operator) Manual 410423401 1124 KB 12/26/2005
Product Photos
Product Photo Dark Gray 2014 KB 4/17/2006
Product Photo Cool White 2014 KB 1/1/2006
Utilities
Memory Switch Setting Utility for Windows 2.42.00 6526 KB 3/31/2008
TM Flash Logo Setup utility 2.60Ea 6668 KB 2/28/2008
TMCOMUSB Serial Emulation Driver 2.00 1346 KB 1/1/2008
TMNet Win Configuration Utility 3.00 5010 KB 3/31/2008
Windows Drivers
Advanced Printer Driver 4.02a 44638 KB 5/28/2008

Paper & Supplies

  • Epson TM-T88IV 2 Color Thermal Receipt Printer (P/N C31C636814)
  • Paper dimensions 3.125" (3 1/8 in.) ± 0.02" x 3.27" diameter (79.5 ± 0.5(W) x 83.0mm)
    •

Description

TM-T88IV Receipt Printer
  • The TM-T88IV POS thermal printer is the latest addition to Epson's innovative, industry-leading TM-T88 POS printer series. Designed specifically for high-volume retail and hospitality environments, the TM-T88IV delivers more speed and more reliability than ever before. It offers 25% faster printing of text and graphics than the TM-T88III, two-color capability, new ease-of-use features and both wired and wireless interfaces.

Product Features

• High-speed printing of up to 7.9"/sec. - 25% faster than the TM-T88III
• Same fast print speed for both text and graphics
• Two-color printing of receipts including logos and all other graphics
• Ease-of-use features including drop-in paper loading, long-lasting autocutter and Auto Status Back messages
• Improved cover design for increased spill resistance
• Wide range of Connect-It interfaces
• Two-year warranty

Expected Lifespan

Photos

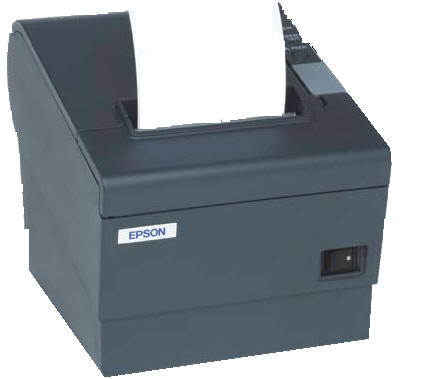

Full View Front

Bottom View

Side View

Additional Resources

IBS Setup

Use these codes for Epson thermal printer and MMF Heritage cash drawer:
-------------------------------------------
QUESTIONNAIRE MAINTENANCE PAGE 6
PRINTER CONFIGURATION
PRINTER ID . . . . . . . . . . . . . P6

PRINTER AREA ID . . . . . . . . . . . . FC
STORE (INVENTORY) LOC . . . . . . . . . 01
PRINTER MAKE & MODEL . . . . . . . . . EPSON TM-88 IV
HEX CHARACTERS:
1. COMPRESS PRINT . . . . . . . . 1B7030 <-- to open drawer
2. DOUBLE WIDTH CHARACTERS . . . . 9999
3. NORMAL WIDTH CHARACTERS . . . . 1D5642 <-- to cut paper
4. BEGIN UNDERLINE . . . . . . . . 1000
5. END UNDERLINE . . . . . . . . .
FORMS CODE:
1=CHANGEABLE 4=CASH RECEIPT TAPE
2=STOCK (WIDE) 5=PICKING TICKET
3=STOCK (NARROW) 6=INVOICE
. . . . . . . . . . . . . . . . 04

PARALLEL OR SERIAL PRINTER. . . P (P/S)
