General Print method Thermal line printing
Print font
Font 9 x 17/12 x 24
Column capacity 56/42 columns
Character size 0.99(W) x 2.4(H)/1.41(W) x 3.39(H)mm {0.039 x
0.095”/0.056 x 0.133”}
Character set 95 Alphanumeric, 37 International, 128 x 8 Graphic
Traditional/Simple Chinese, Thai, Japanese, Korean
Bar code UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), CODE 39, CODE 93,
CODE 128, ITF, CODABAR
Characters per inch 20 cpi/15 cpi
Printer Interface* RS-232C, Bi-directional parallel, RS-485, USB,
10Base-T I/F
Data buffer 4 KB/45 bytes
Print speed (max.) 150mm {5.9”}/sec. (47 lps, 1/8” conversion)
Paper dimensions Roll paper: 79.5 ± 0.5(W) x diameter 83.0mm {3.13 ±
0.02 x diameter 3.27”}
Paper thickness 0.06 to 0.07mm {0.0024 to 0.0028”}
Power 24 VDC ± 7%
Power consumption Approx. 1.8A (mean)
D.K.D. function 2 drivers
Reliability
MTBF 360,000 hours
MCBF 52,000,000 lines
Overall dimensions 145 x 195 x 148mm (W x D x H) {5.71 x 7.68 x
5.83”}
Mass Approx. 1.8 kg {3.96 lb}
Color ECW, EDG
Control Board EMC Standards VCCI class A, FCC class A, CE marking,
AS/NZS 3548 class B
Power 24 VDC ± 7%
Safety Standards UL, CSA, TÜV (EN60950)
Inch values are approximate.
dpi: dots per 25.4mm (dots per inch)
cpi: characters per 25.4mm (characters per inch)
lps: lines per second
* Dealer option: RS-485, USB, 10Base-T I/F |
Fast and versatile printing

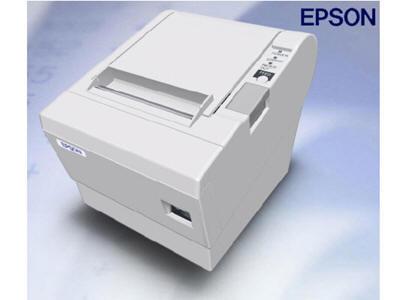

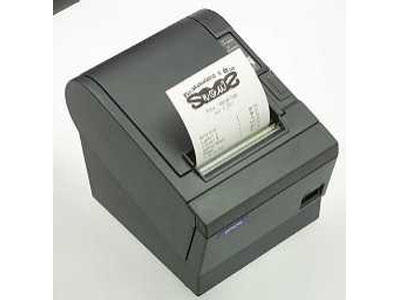

The TM-T88III prints at speeds
of up to 150mm (5.90 inches) per
second—25% faster than the
TM-T88II. Flash memory allows
printing of graphics and logos with
smooth, scalable characters, landscaping
or black-white reversal to
give your receipts and coupons the
highest customer impact. Bar codes
can be printed vertically (ladder bar
code) and horizontally (fence bar
code). Its flexible page mode gives
you a choice of receipt layouts. |
| |
|
