Push / Pull Tractor Setups

Push Tractor (Standard Setup)

• This is the default printer setup

Pull Tractor (Non-supported setup)

• This is not the standard setup but this also works.

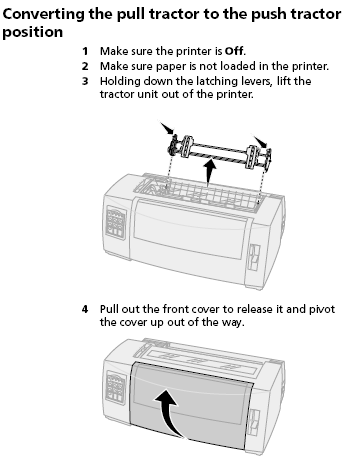

Converting to a Pull Tractor

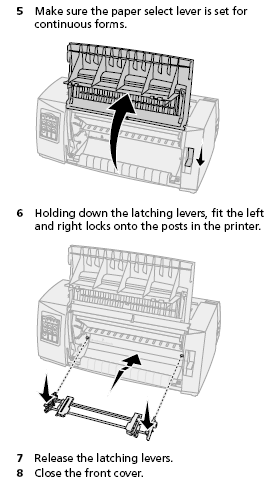

Converting to a Push Tractor (Standard)
