For reliable,
continuous-forms, system printing on a wide
range of media types, sizes and
weights

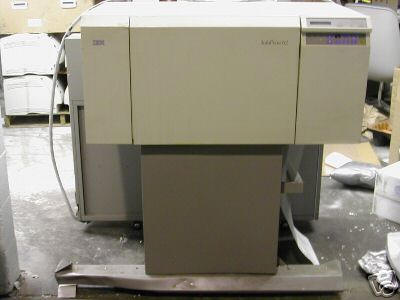

IBM Infoprint 62
Continuous-forms Printer
_
High-quality, continuous-formssystem
printing
_
Entry-level system printer
_
Flash fusing for efficient label printing
_
Straight paper path for reliable printing on a wide
variety of media
_
Unique cutting design helps minimize paper waste
_
Small footprint
Highlights
Complex business environments
require a flexible print solution that meets many diverse
needs. Businesses
need a traditional production
printer that can print special forms and labels—all with
exceptional print quality.
New and improved benefits
The IBM®
Infoprint®
62 helps to streamline supply chain management by ensuring
that your products have accurate, legible labels that can be
easily scanned. The Infoprint 62 cost-effectively prints
documents at the point-of-need. Print jobs can be submitted
to the Infoprint 62 using a corporate intranet, providing
easy access from all parts of your enterprise. By supporting
a wide range of paper, one IBM Infoprint 62 can replace
several specialty printers.
Superior reliability
The IBM Infoprint 62 offers the
reliability of a continuous-forms printer. The straight
paper path minimizes
operator intervention and allows
the use of difficult-to-print, heavy stock and labels.
Because the paper stays
flat, labels are less likely to
peel off, and heavy stock doesn’t tear at paper
perforations. The printer uses noncontact, flash-fusing
technology, which makes it ideal for both production
printing and special forms printing, such as heavy stock,
labels and ID cards.
Leading-edge controller
The Infoprint 62 printer’s powerful Advanced Function Common
Control Unit™
(AFCCU™)
leverages IBM’s
enhanced RISC System/6000®
technology. Compressed images, graphics, outline fonts and
printergenerated bar codes can be processed and rendered at
rated speeds.
IBM Infoprint 62 Continuous-forms Printer
at a glance
For expanded specifications visit:
ibm.com/printers/62
Print Speed (up to)
Letter (8.5” x 11”) Landscape 62 pages per minute
A4 (210 x 297mm) Landscape 64
pages per minute
Legal (8.5” x 14”) Landscape 62
pages per minute
Ledger (11” x 17”) Portrait 31
pages per minute
Usage1
Letter (8.5” x 11”) 600,000 maximum pages per month
A4 (210 x 297 mm) 620,000
maximum pages per month
Paper Capacities
Input stack height: up to 3000 sheets of 64 gsm paper
Output stack height: up to 3000
sheets of 64 gsm paper
standard or up to 2000 sheets
with optional Power Stacker
Media (inches/mm)
Width: 7” to 16” (178 to 406 mm) max print width (14.6”/371
mm)
Length: 3” to 22” (76.2 to 559
mm) standard
7” to 12” (178 to 305 mm) with
optional Power Stacker
Weight: 17 to 54 lbs. (64 to 204
gsm) letter basis
17 to 44 lbs. (64 to 165 gsm)
bond
44 to 125 lbs. (71 to 204 gsm)
tag and label
Type: Preprinted or blank forms,
pre-punched forms, perforated
forms, security forms, approved
labels and color paper
System Attachments
Ethernet (TCP/IP) 10BaseT, or 10Base2
Token-Ring (TCP/IP or SNA)
S/370™
Parallel Channel or ESCON
AFP Software Support
PSF™/MVS®,
PSF/VM™,
PSF/VSE™,
PSF for OS/400®
PSF for AIX®,
PSF for OS/2®,
Infoprint Manager
Standard Features
Choice of resolution: 240 (Model 002) or 300 (Model 003)
dots per inch
64 MB memory
Ethernet 10BaseT attachments
Gravity stacker
Options
Power Stacker
Second attachment
Physical
Width: 50.6” (1285 mm) Depth: 36.4” (923 mm) Height: 47.6”
(1207 mm)
Characteristics
Weight: 483 lbs. (220 kg) without Power Stacker; 617 lbs.
(280 kg) with
Power Stacker
Power Requirements
200-240 VAC/50 or 60 HZ single-phase |
