Standard 520 System

System Information

WRKHDWRSC *prc

• CEC01 9406-520 Operational Main Card Enclosure
  PN01 28E5 Operational System Control Panel
  MP01 8327 Operational System Processor Card
  PV01 528F Operational Processor Capacity Card
  SP01 293A Operational Service Processor Card
  BCC01 Operational Bus Adapter
  BCC02 8327 Operational Bus Adapter
  BCC03 8327 Operational Bus Adapter
  BCC04 8327 Operational Bus Adapter
  BCC05 8327 Operational Bus Adapter
  MS01 313A Operational 512MB Main Storage Card
  MS02 313A Operational 512MB Main Storage Card
  MS03 313A Operational 512MB Main Storage Card
  MS04 313A Operational 512MB Main Storage Card
  MS05 313A Operational 512MB Main Storage Card
  MS06 313A Operational 512MB Main Storage Card
  MS07 313A Operational 512MB Main Storage Card
  MS08 313A Operational 512MB Main Storage Card

WRKHDWRSC *stg

• Resource Type-model Status Text
  CMB01 2844-001 Operational Storage Controller
  DC01 573D-001 Operational Storage Controller
  CMB02 268C-001 Operational Combined function IOP
  DC02 6B02-001 Operational Storage Controller

WRKHDWRSC *cmn

• Resource Type Status Text
  CMB02 268C Operational Combined function IOP
  LIN01 6B03 Operational Comm Adapter
  LIN011 6B03 Operational Comm Port
  LIN02 6B03 Operational Comm Adapter
  CMN02 6B03 Operational Comm Port
  CTL03 6B20 Operational Comm Adapter
  CMB03 5706 Operational Comm Processor
  LIN03 5706 Operational LAN Adapter
  CMN03 5706 Operational Ethernet Port
  CMN04 5706 Operational Ethernet Port
  CMB04 2793 Operational Comm Processor
  LIN04 2793 Operational Comm Adapter
  CMN05 2793 Operational Comm Port
  CMN06 2793 Operational Comm Port

WRKHDWRSC *LWS

• Resource Type Status Text
  CMB01 2844 Operational Work Station Processor
  CTL01 2746 Operational Work Station Controller
  CTL02 2746 Operational Work Station Controller

Display System Status (DSPSYSSTS)

• Display System Status S104CA2A
  10/02/07 06:46:34
  % CPU used . . . . . . . : .8 Auxiliary storage:
  % DB capability . . . . : .0 System ASP . . . . . . : 105.4 G
  Elapsed time . . . . . . : 00:00:01 % system ASP used . . : 66.5864
  Jobs in system . . . . . : 5479 Total . . . . . . . . : 105.4 G
  % perm addresses . . . . : .009 Current unprotect used : 2385 M
  % temp addresses . . . . : .056 Maximum unprotect . . : 2881 M

  System Pool Reserved Max -----DB----- ---Non-DB---
  Pool Size (M) Size (M) Active Fault Pages Fault Pages
  1 216.81 114.54 +++++ .0 .0 .0 .0
  2 1784.73 .86 69 .0 .0 .0 .0
  3 1597.82 .00 126 .0 20.4 8.8 9.7
  4 160.44 .00 8 .0 .0 .0 .0

Line Status (WRKCFGSTS *LIN)

• Description Status
  ETHLINE ACTIVE
  ETHLINET ACTIVE
  ETHLITCP ACTIVE
  FAXCOMLIN1 VARIED OFF
  FMKISL96 VARIED OFF
  QESLINE VARIED OFF
  QTILINE VARIED OFF
  QTIPASLIN VARIED OFF
  Q1PLIN VARIED OFF

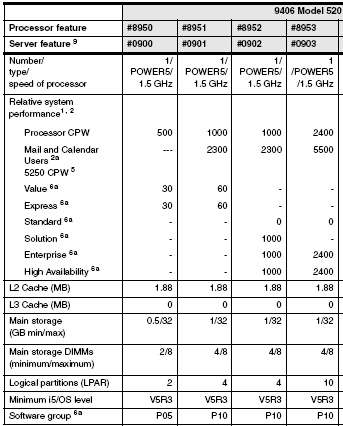

520 - Documentation

• http://www.redbooks.ibm.com/redpieces/pdfs/sg247486.pdf
• 8327 Processor
