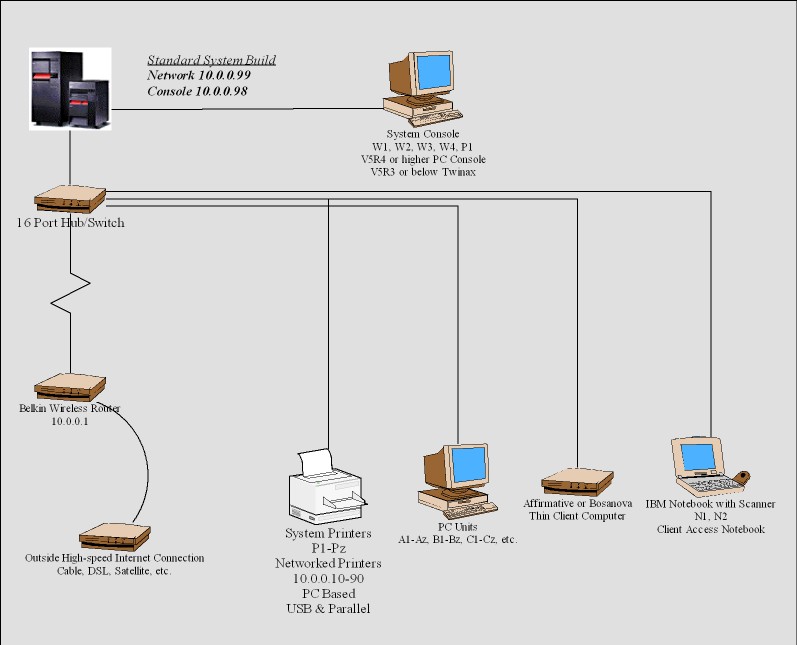

IBS Networking Example

Common Components & Connections Include

Required components are highlighted

• IBM Server
  • System console directly connected to server
  • Cable connection to Hub/Switch
  • Cable connection to UPS (Universal Power Supply/Battery Backup)
  • Tape drive (internal)
  • Mirrored disk drives (internal)
• Hub/Switch
  • All networked peripherals (PCs, Thin Clients, Network printers)
  • IBM Server
  • Wireless Router or Internet Modem
  • UPS
• PCs
  • Hub/Switch
  • Attached printers
  • Attached scanners
• Thin Clients/ Dumb Terminals
  • Hub/Switch
  • Attached printers
  • Attached scanners
  • Attached cash drawers
