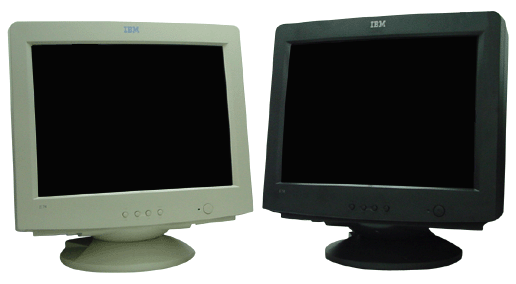

IBM E74 17" Black CRT Monitor
(16.0" viewable)
 |
The E74 color
monitor delivers great performance at affordable price. This new monitor is
suitable for small to medium businesses for applications such as: word
processing, e-mail/data entry, complex spreadsheets, business graphics, and
entry-level desktop publishing. It has a 17-inch CRT with a viewable image
size of 16.0 inches (406 mm), incorporating a 0.27 dot pitch. It also has a
maximum horizontal frequency of 69kHz for flicker-free operation at an
optimum 1024x768 pels at 85Hz with a maximum addressability of 1280x1024
pels. Video Electronics Standards Association (VESA) Display Data Channel (DDC)
capability for Plug and Play and asset tracking when the attaching system
unit's hardware and software is DDC-enabled. Power consumption requirements
of Swedish National Board for Industrial and Technical Development (NUTEK).
As an ENERGY STAR partner, IBM has determined that this product meets the
ENERGY STAR guidelines for energy efficiency. Timings for the VESA 85 Hz
refresh rate display modes for 640x480, 720x400, 800x600, and 1024x768
addressability's. Appropriate graphics adapter hardware and software must be
installed in the attaching system unit. |
Features and Benefits
- This quality monitor delivers reliable performance at an exceptional
price.
- Horizontal line frequency 69KHz is capable of running 1024 x 768
flicker-free resolution.
- On screen display gives a wide range of geometric and color settings.
|
Display
- CRT Size in Inches 17.0
- Case Color Black
- Dot Pitch 0.27mm dot
- IBM Preset Modes 10
- Maximum Resolution 1280x1024 at 60Hz
- Maximum Vertical Refresh Rate 120 Hz
- Minimum Horizontal Refresh Rate 30 KHz
- Monitor Type CRT
- Plug N Play Yes
- Preset Modes Text 640x480@ 60, 75, 85Hz 720x400@ 70,
85Hz 800x600@ 75, 85Hz 960x529@ 75Hz 1024x768@ 75, 85Hz
- Recommended Resolution 1024x768 at 85Hz NI
- Screen type description FST
- Slowest Vertical Refresh Rate 50 Hz
- Touch Screen No
- User Programmable Modes 8
- Viewable image size (diagonal) inches 16.0
- Viewable Image Size (Diagonal) Mm 406
Packaging
- Depth Box 1 Metric 517 mm
- Depth Box 1 US 20.4 in
- Height Box 1 Metric 467 mm
- Height Box 1 US 18.4 in
- Weight Box 1 Metric 17.5 Kg
- Weight Box 1 US 38.5 LBS
- Width Box 1 Metric 464 mm
- Width Box 1 US 18.3 in
Technical Information
- Supported Software Applications Window NT 4.0 Windows 95 Windows 98
Windows 2000
- Power management
- Heat emissions 307 BTU
- Environmental Information
- Energy Consumption (watts) 90
- Heat Emissions 307 BTU
- Maximum Operating Humidity 80 %
- Maximum Operating Temperature 40 C
- Minimum Operating Humidity 10 %
- Minimum Operating Temperature 0 C
- Power Consumption 90 W
|
Display Modes
-
640 x 480
60 Hz NI
Standard
-
640 x 480
66 Hz NI
Standard
-
640 x 480
75 Hz NI
Standard
-
640 x 480
85 Hz NI
Standard
-
720 x 400
70 Hz NI
Standard
-
800 x 600
60 Hz NI
Standard
-
800 x 600
75 Hz NI
Standard
-
800 x 600
85 Hz NI
Standard
-
1024 x 768
60 Hz NI
Standard
-
024 x 768
70 Hz NI
Standard
-
1024 x 768
75 Hz NI
Standard
-
1024 x 768
85 Hz NI
Standard
- 1280 x 1024
60 Hz NI
Standard
|
|
