Dual Speed 5 Port Hub (DSH-5)/ 8 Port Hub (DSH-8)

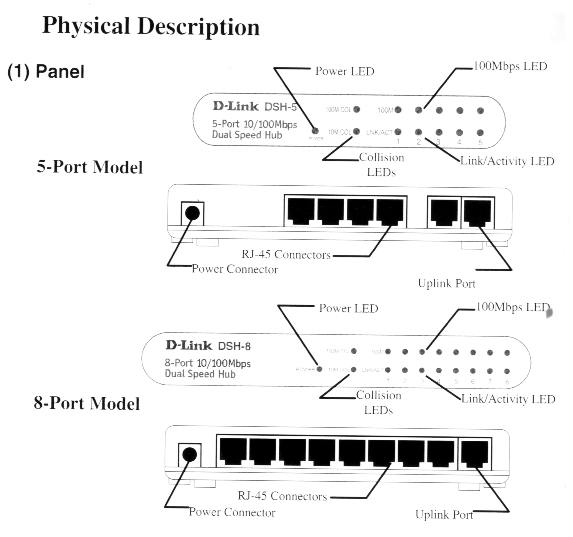

Front & Rear Views

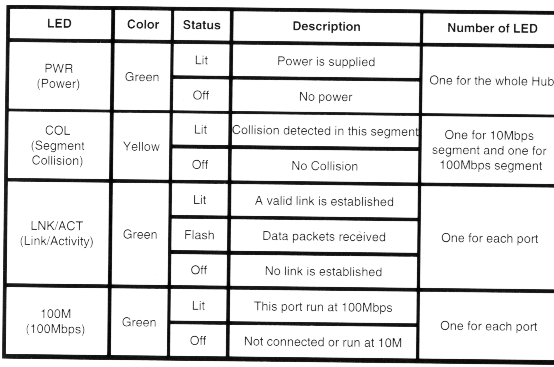

LED Light

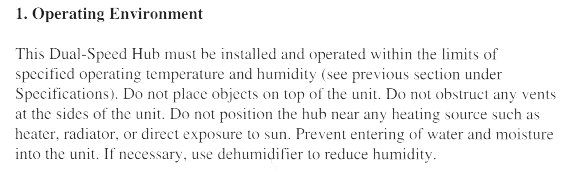

Operating Environment

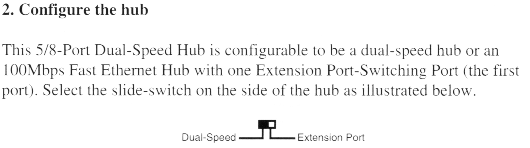

Configure the Hub

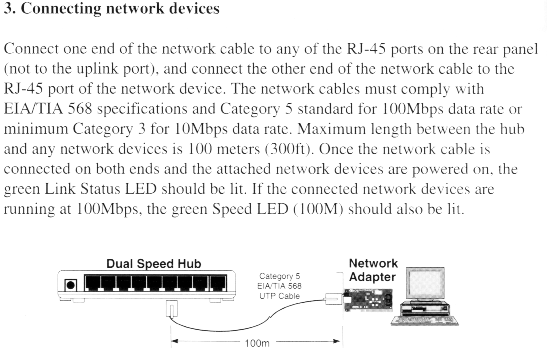

Connecting Network Devices

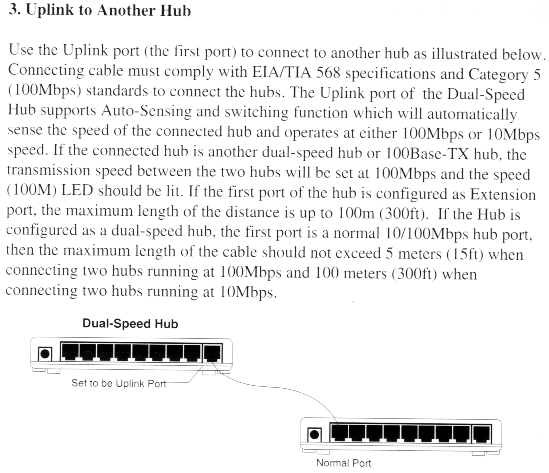

Uplink to Another Hub

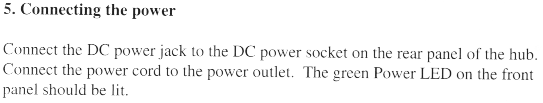

Connecting the Power

Troubleshooting

Power LED isn't Lit

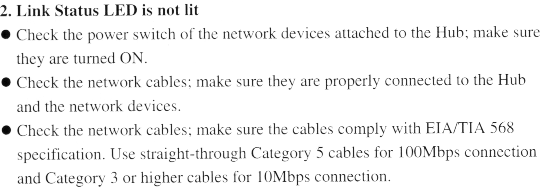

Link status isn't lit

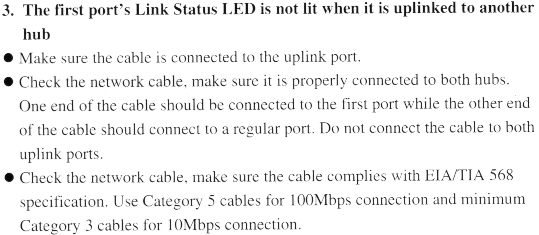

First Ports Link status LED isn't lit

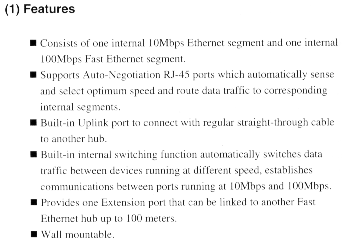

Features

Specifications

Extension

• Use the extension cable to expand an additional 100m from hub to hub (max 200m /600 feet)
