IBM iSeries Models

CISC Systems



9401

  • Model 150 is standard
  • This model is designed for smaller businesses

9402

  • Model 200 is standard
  • This model was designed for small to medium size businesses
  • V3R2 is the maximum system version

9404

  • Model 400 is standard
  • This model was designed for medium size businesses

9406

  • Model 600 is standard
  • This model was designed for medium to large business operations

Model 170

  • This model was designed for medium to large business operations

Model 270

  • This model was designed for medium to large business operations

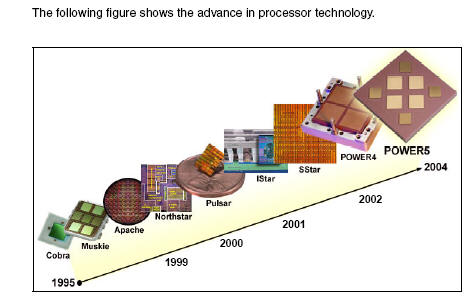

Processor Development

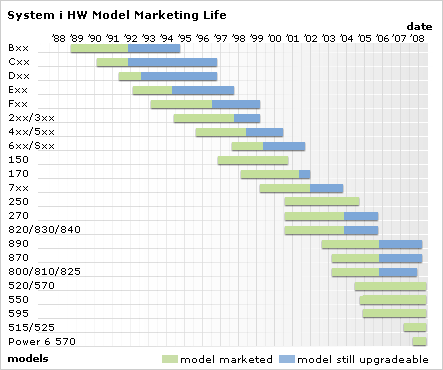

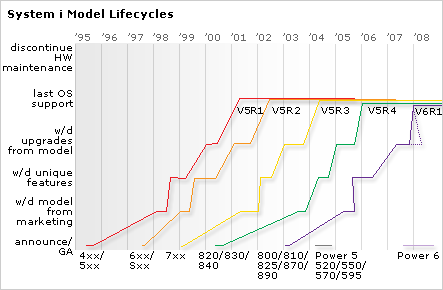

Life Cycle

CPU in AS/400, iSeries, i5

The System i5 uses IBM POWER CPUs. These CPUs are developed and manufactured by IBM. The POWER 4/5/5+ chips contain two cores. There are Multi-Chip Modules (MCM) available. They have 4 CPU (8 cores) or 8 CPUs (16 cores) in one MCM.

CPU Year Speed Server-Model
Cobra (A10) since 1995 55 or 75 MHz Model: 4xx, 5xx
Muskie (A25/A30) since 1995 125 or 154 MHz Model: 53x
Apache (RS64) (A35) since 1997 125 MHz Model: 6xx, 150
NorthStar (RS64 II) since 1998 200, 255 or 262 MHz Model: 170, 250, 7xx, 650, S40, SB1[3]
Pulsar (RS64 III) since 1999 450 MHz Model: 270, 820
IStar since 2000 400, 500, 540 or 600 MHz Model: 820, 830, 840, SB2, SB3
SStar (RS64 IV) since 2001 540, 600 or 750 MHz Model: 270, 800, 810, 820, 830, 840
POWER4 since 2002 1.3 GHz Model: 890
POWER4 since 2003 1.1 or 1.3 GHz Model: 825, 870
POWER5 since 2005 1.5 or 1.65 GHz Model: i5-520; i5-550; i5-570; i5-595
POWER5 since 2006 1.9 GHz Model: i5-595
POWER5+ since 2006
 		 1.9 GHz
2.2 GHz		 Model: i5-520, i5-550
Model: i5-570

[edit] Models of AS/400, iSeries, i5 systems

Model Year CPU Group Base - CPW
B10, B20, B30, B35, B40, B45, B50, B60, B70 1988, 1989 P10, P20 2,9 - 20
C04, C06, C10, C20, C25 1990 P10 3,1 - 6,1
D02, D04, D06, D10, D20, D25, D35, D45, D50, D60, D70, D80 1991 P10, P20, P30 3,8 - 56,6
E02, E04, E06, E10, E20, E25, E35, E45, E50, E60, E70, E80, E90, E95 1992 P10, P20, P30, P40 4,5 - 116,6
F02, F04, F06, F10, F20, F25, F35, F45, F50, F60, F70, F80, F90, F95, F97 1993 P05, P10, P20, P30, P40 5,5 - 177,4
P01, P02, P03 1993, 1994, 1995 P05 7,3 - 16,8
150 1996 P05 10,9 - 35,0
S10, S20, S30, S40 1997 P05, P10, P20, P30, P40, P50 45,4 - 4550
SB1, SB2, SB3 1997, 2000 P30, P40 1794 - 16500
10S, 100, 135, 140 1995, 1993 P05, P10, P20 17,1 - 65,6
170 1998 P05, P10, P20, 30 - 1090
200, 20S, 236 1994 P05, P10 7,3 - 17,1
250 2000 P05 50 - 75
270 2000 P05, P10, P20 50 - 2350
300, 30S, 310 1994 P10, P20, P30, P40 11,6 - 177,4
400, 40S, 436 1995 P05, P10 13,8 - 91,0
500, 50S, 510, 530, 53S 1995 P10, P20, P30, P40 18,7 - 650
600, 620, 640, 650 1997 P05, P10, P20, P30, P40, P50 22,7 - 4550
720 1999 P10, P20, P30 240 - 1600
730 1999 P20, P30, P40 560 - 2890
740 1999 P40, P50 3660 - 4550
800 2003 P05, P10 300 - 950
810 2003 P10, P20 750 - 2700
820 2000, 2001 P05, P10, P20, P30, P40 100 - 3700
825 2003 P30 3600 - 6600
830 2000, 2002 P20, P30, P40, P50 1850 - 7350
840 2000,2001,2002 P40, P50 10000 - 20200
870 2002 P40, P50 7700 - 20000
890 2002 P50, P60 20000 - 37400
520 2004 - 2006 P05, P10, P20 500 - 7100
550 2004 - 2006 P20 3300 - 14000
570 2004 - 2006 P30, P40 3300 - 58500
595 2004 - 2006 P50, P60 24500 - 184000
515 2007
525 2007
