iSeries Network Examples

Additional Support Pages

• Routers
• Subnet Calculator

Common Setup & Configurations

10. Networks

• Router 10.0.0.1
  • Subnet 255.255.0.0 or 255.255.255.0
• Server 10.0.0.99
• Client workstations 10.0.0.100/200

192. Networks

• Router 192.168.1.1 or 192.168.2.1
  • 255.255.255.0
• Server 192.168.1.99 or 192.168.2.99
• Client workstations 192.168.1.100/200 or 192.168.2.100/200

Examples

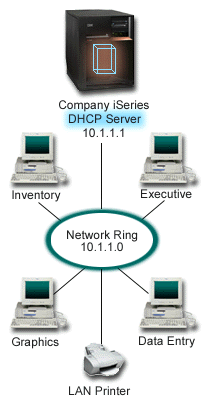

LAN setup for iSeries server

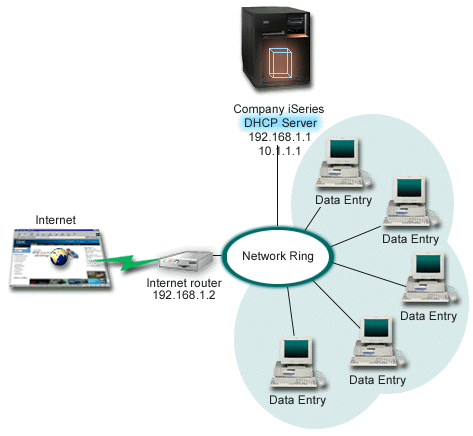

Using DHCP with multiple IP addresses assigned to the same adapter.

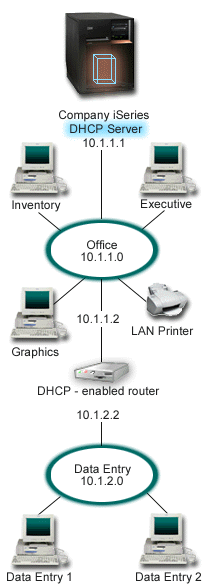

Multiple LANs connected through a router.

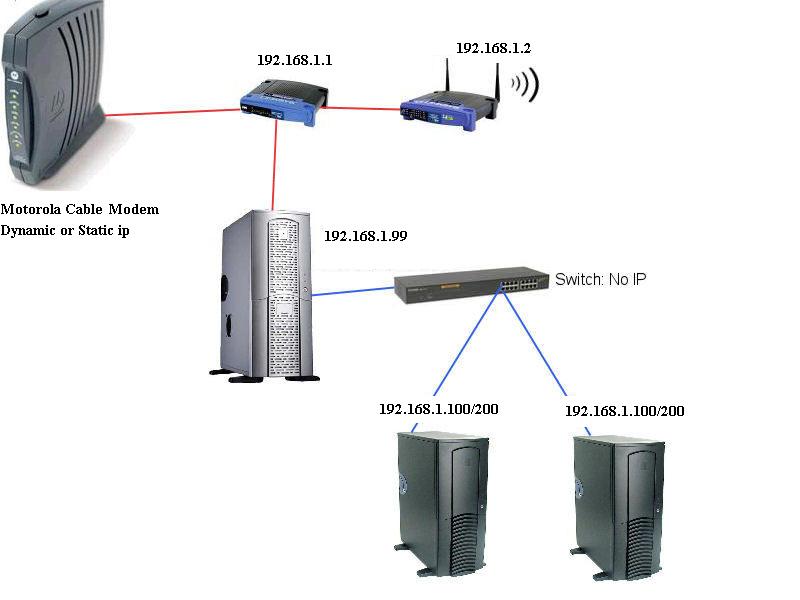

Example Using Linksys Routers and Motorola Cable Modem
