Clip 5250 Modems

See Also

Using your Clip 5250

☞     If you purchased a Clip-5250 Modem for your AS/400 or S/36 System you now have the capability of remote dial-in. Remote dial-in permits you to access your System from any part of the World with a Phone line, PC or Notebook Modem and a PC or Notebook computer. You can be signed on your System as if you were actually in the store at a Workstation.

☞     Many keys are different between what you are used to at your office and what you will use when working on your Clip-5250. Following is a listing of Key Changes which you must use when working via Modem.

Clip Keyboard Layout

  • Key Sequence AS/400 Key Sequence AS/400
    Esc + 1 Cmd1 Esc + 2 Cmd2
    Esc + 3 Cmd3 Esc + 4 Cmd4
    Esc + 5 Cmd5 Esc + 6 Cmd6
    Esc + 7 Cmd7 Esc + 8 Cmd8
    Esc + 9 Cmd9 Esc + 10 Cmd10
    Esc + - Cmd11 Esc + = Cmd12

    Esc + Shift + 1 Cmd13 Esc + Shift + 2 Cmd14
    Esc + Shift + 3 Cmd15 Esc + Shift + 4 Cmd16
    Esc + Shift + 5 Cmd17 Esc + Shift + 6 Cmd18
    Esc + Shift + 7 Cmd19 Esc + Shift + 8 Cmd20
    Esc + Shift + 9 Cmd21 Esc + Shift + 0 Cmd22
    Esc + Shift + - Cmd23 Esc + Shift + = Cmd24

    Esc + D Page Down Esc + A Systems Attention
    Esc + U Page Up Esc + H HELP
    Esc + S Systems Request
    Esc + ENTER ENTER Esc + T Test Request
    ENTER FIELD Exit Esc + C Clip-5250 Help Menu
    TAB TAB Esc + I Insert
    Esc + M FIELD MINUS
    Esc + R Error RESET

☞     Please refer to your user manual for further important information regarding your Clip-5250 Modem.

Photos

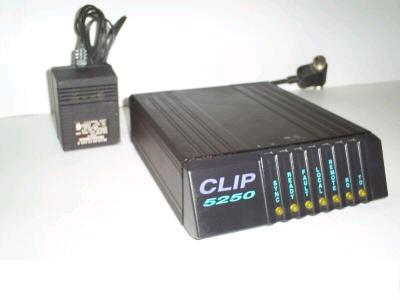

Front View

clip 5250 modem, with t-connector and power supply
