- Cable attachment is
for specific APC models ONLY
- Cable attachment is not available for Belkin models
- Weight 23.5lbs
- Width 3.46in
- Height 13.13in
- Depth 18.25in
- 1-800-2BE-LKIN | 1-800-223-5546
- Multiple communications options (SNMP, USB and serial)
- $200,000 connected equipment warranty
- 8 battery protected outlets
- 1000 joules of surge suppression capability
- Dual form factor (horizontal/vertical)
- 3 year product warranty
- Automatic Voltage Regulation
- Quieter operation (no fan)
More Information
Capacity: 1500VA / 830W
Input Voltage Range: 88 - 140 Vac
Input Frequency: 60Hz (+/-3Hz)
Output Voltage: Simulated Sine Wave, 120Vac (+/-10Hz)
Output Frequency: 60Hz +/-1Hz (On Battery)
Backup Time:
Up to 120 Minutes
Typical Recharge Time: < 12 hours recover 85% capacity
Ambient Operation: 0 to 85% humidity, non-condensing, 0 to 40C
Safety: UL/c-UL, FCC Class B
Surge: IEEE C62.41 Category A standard
Dimensions: 3.46" x 14.96" x 13.13"
Net Weight: 23.54lbs

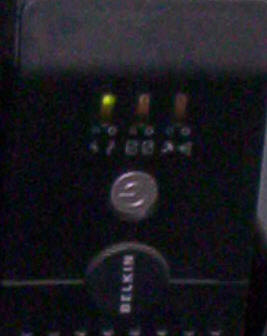

- ONLINE (Green LED)
- Solid
Green = AC Power is on
-
Flashing Green = AVR is active
- ON BATTERY (Yellow LED)
-
Flashing Yellow LED with Audible Alarm (Beeping) = The UPS
is on battery backup or battery is low.
-
FAULT/OVERLOAD/*REPLACE BATTERY (Red LED)
-
Flashing Red = battery output is drawing more power than
the UPS can provide
- Solid
Red = There is a problem with the UPS. The LED will
be lit continuously, and the unit will sound an audible alarm for 10
seconds
Or battery is weak or bad; the battery needs to be replaced.
- SITE
WIRING FAULT (On Rear Panel)
- Solid
Red = There is either no ground circuit or a reversed
polarity in the building wiring
- UPS not on, LED not lit
- Cause: On/Off Test button
not pushed on pushed less than 2 seconds
Recovery: Press the On/Off /Test button for more than 2 seconds
- Cause: Battery voltage is
too low
Recovery: Recharge the UPS at least 8 hours
- Cause: UPS fault
Recovery: Replace UPS
- UPS always on battery mode
- Cause: Power cord loose
Recovery: Re-plug the power or replace power cord
- Cause: AC breaker is burned
out or tripped
Recovery: Replace or reset the breaker
- Cause: AC utility voltage is
too high or too low, or blackout conditions exist
Recovery: Replace or reset the breaker
- The UPS continuously beeps
- Cause: Overload
Recovery: Remove the non-critical loads
- Red LED lit
- Cause: Battery failure
Recovery: Replace battery\
|
