Axis Communications 0052-9

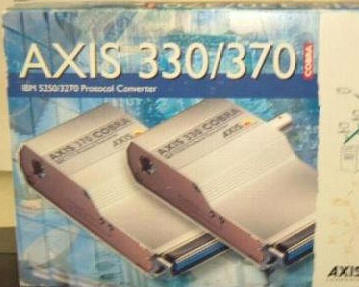

AXIS 370
Protocol Converter
Specifications
The AXIS 370 IBM
Protocol Converter
MODEL- AXIS370 VENDOR- AXIS
COMMUNICATIONS
FEATURES- AXIS 370 Cobra
The compact AXIS 370 Cobra IBM 3270 Protocol Converter gives you a
fast and efficient printing solution in IBM mainframe systems. The
AXIS 370 Cobra is directly connected to the Centronics port of the
printer and supports all major ASCII printers on the market. Axis'
dedicated high-speed communications processor gives the AXIS 370
unmatched throughput.
-- SPECIFICATIONs
-----------------------------------
ATTACHMENTS - 370 Pocket Cobra, AX-7 Cobra+, Oki-500/1, HP-MIO/1,
AFP/1:
- IBM 3174, 3274, and 3276 Controllers
- IBM 43xx, 47xx, and 937x Printer Adapters
- IBM 8775 Display Terminal
- IBM 3299 Multiplexor
- Equivalent PCM Controllers
IBM FEATUREs- Coax; 370 Pocket Cobra, AX-3 Cobra+, HP-MIO/1,
OKI-500/1:
- All IBM CECP national languages
- Load Translation Table support
- All IBM RPQs
- EAB (APL2/Text, color)
- Query Reply and Structured Fields
- DPC connector for attachment to IBM Cabling System without
using baluns.
- Auto Orientation and Computer Output Reduction (except
OKI-500).
- Programmable Symbols (GDDM Support) (except HP-MIO,
OKI-500).
MISC. - Bar Codes: EAN-8, EAN-13, UPC A, Code 39, Code 128,
Interleaved 2-of-5 and Codabar Matrix.
Transparent data pass-through
Start/End of job strings
User definable strings for forms and logos
ASCII string substitutions
Scalable fonts support
Extended Emulation
POWER- 9V AC, min. 300mA, provided by external power supply.
SIZE - 2.2"w x 1.2"h x 4.0"d WT.- 0.3 lbs. |
